[Kent W. Kalb]

Kent W. Kalb on October 23, 2015 at 2:54 pm #17904

Glad to have the common units for troubleshooting! Thanks, again.

[Kent W. Kalb]

Kent W. Kalb on October 23, 2015 at 2:52 pm #17903

Thanks for the “heads up”. Shop didn’t mention/know anything about this…

[Anonymous]

Anonymous on October 23, 2015 at 2:29 pm #17902

Hi Kent, just to let you know there’s a software bug with our boxes that you should know about. You must pull the breaker on your mlb-100 box until the 540 has identified it’s gps (lat-long) position. You can see the lat/long on the transponder when it’s available. Then you power up the mlb-100 and not before. If you power up the mlb-100 box before the 540 knows its position, the mlb-100 will lock up and not show the ownship position correctly. They are working on this.

Best,
Scott Sherer
N344TB

[Kent W. Kalb]

Kent W. Kalb on October 23, 2015 at 2:18 pm #17901

Hello Scott,
Yes, picked up the completed IFD440 and MLB100 installed today. Didn’t have much time to fly to fully explore the functions. Not too surprised at the common source…ie…the audio panels often from the same manufacturer. Looking forward to my next flight!

[Anonymous]

Anonymous on October 23, 2015 at 1:50 pm #17900

Hi Kent,
Gee, I think I have a good laugh for you. If you remember, I installed the NavWorx ADS-600B UAT with my IFD-540 and Garmin GMX-200 MFD. As I recall you were waiting for MLB-100 availability. Did you get it? Is it installed yet? Do you like it? Guess what!?! They are the same box. NavWorx is supplying their ADS-600B UAT to Avidyne, who is renaming it the MLB-100… their service guy told me. Now you know you have a good box, however.

Best,
Scott Sherer
N344TB

[Anonymous]

Anonymous on October 18, 2015 at 10:06 am #17885

Great news! Post those pics and keep us informed.

Wishing you high functionality and a very low bill 🙂

Scott Sherer
N344TB

[Kent W. Kalb]

Kent W. Kalb on October 12, 2015 at 5:20 pm #17874

Finally have my IFD 440/MLB100 install scheduled this coming Wednesday! Can’t wait to have my panel completed. Will post some pics in a week or so…

[Anonymous]

Anonymous on October 1, 2015 at 6:11 pm #17865

Good luck in a month! I’m just glad I’m done, it works and it’s paid for. Hurray! Best to you in your project. Make sure you post a pic or two when complete!

Best,
Scott Sherer
N344TB

[Kent W. Kalb]

Kent W. Kalb on October 1, 2015 at 5:24 pm #17864

Looks great! I have found traffic info to be VERY helpful..confirming my “scan”. My install is scheduled for first week of November. Awaiting Avidyne MLB100 availability. I utilize my Status 2 and iPad/Foreflight for ADS info, at present. Looking forward to weather/traffic on my IFD 540

[Anonymous]

Anonymous on October 1, 2015 at 11:52 am #17863

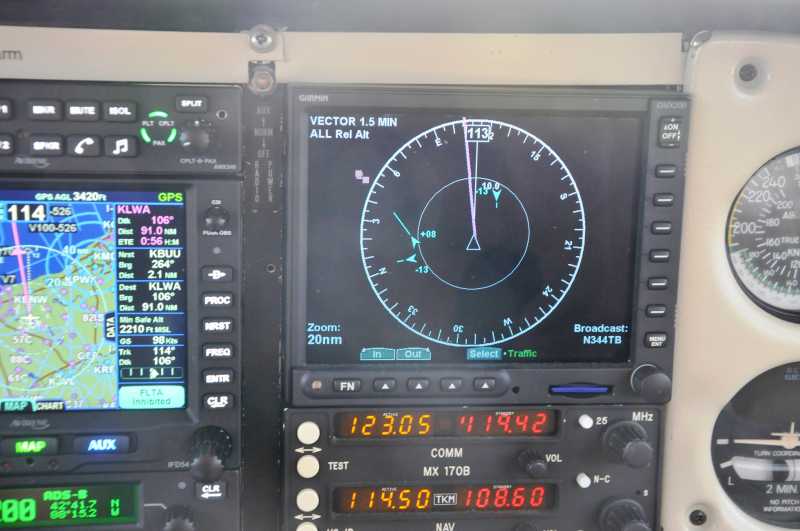

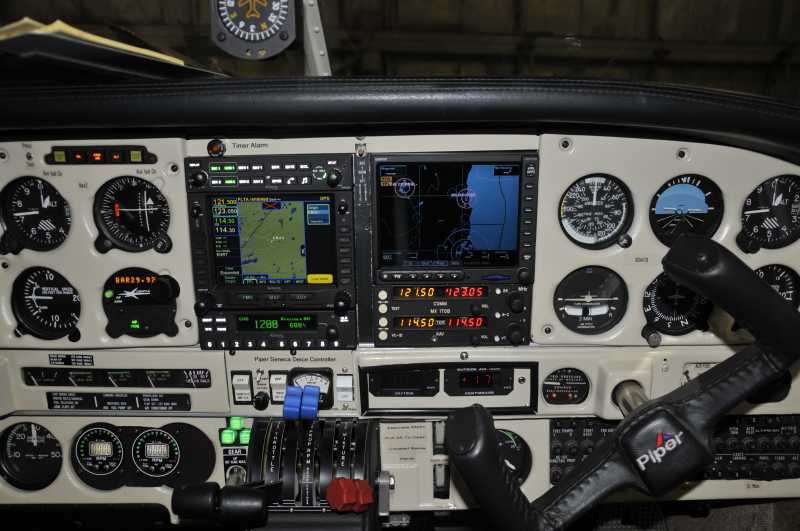

Here’s a couple of TIS-B from ADS-B In pics of traffic while on a flight. The pics show Mode C aircraft as well as ground based mode S.

Scott Sherer
N344tb

Attachments:

• Picture1.JPG
• Picture2.JPG
